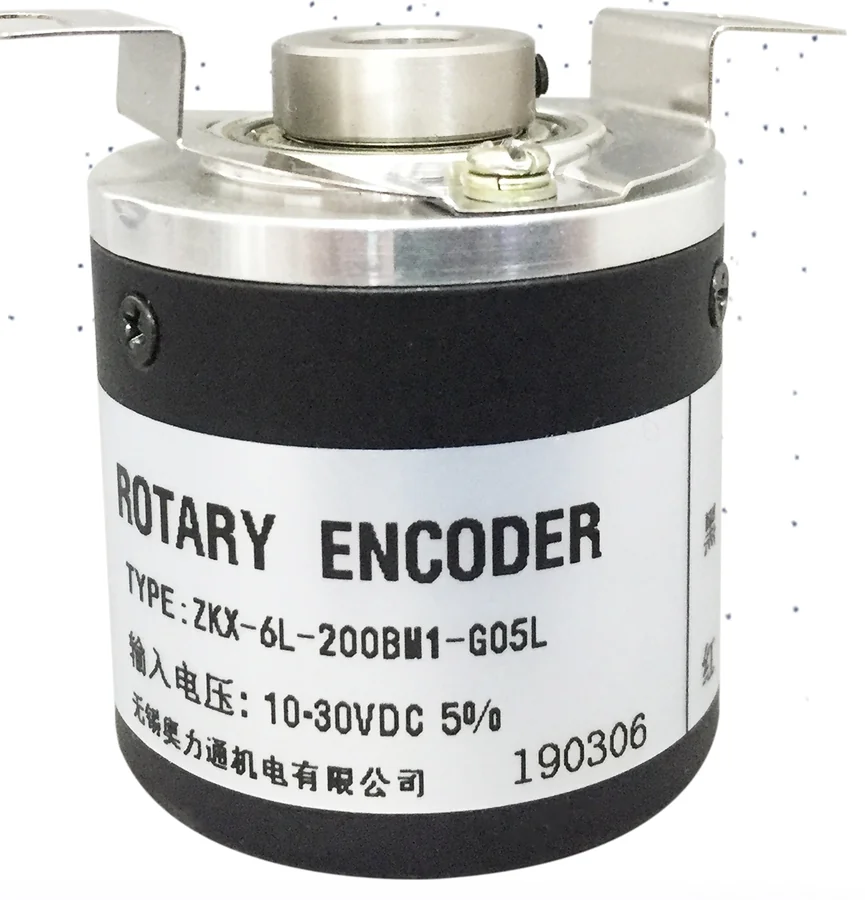

ZKX-6A-200BM1-G05L is an industrial photoelectric incremental rotary encoder (often categorized as an encoder decoder) typically manufactured by Yuheng Optics or supplied as a generic equivalent for CNC machinery and automation systems. It functions by converting the angular position or motion of a shaft into electrical pulses to measure speed, position, and direction. Key Specifications & Technical Breakdown

Key Specifications & Technical Breakdown

The model number breaks down into standard industrial naming conventions for Changchun Yuheng encoders:

1. ZKX-6A Series: Represents the model family, featuring a compact hollow shaft design (typically with a 38mm outer diameter housing) engineered for strong anti-interference.
2. 200BM1 / 200BM: Indicates a resolution of 200 Pulses per Revolution (P/R), working alongside a standard A, B, Z channel configuration (where A/B track position/direction, and Z provides a zero-reference recalibration index).
3. G05L: Indicates a 5V DC power supply using a Line Driver output signal type. The "L" line driver design provides long-distance signal transmission and robust noise resistance.
