Key Specifications

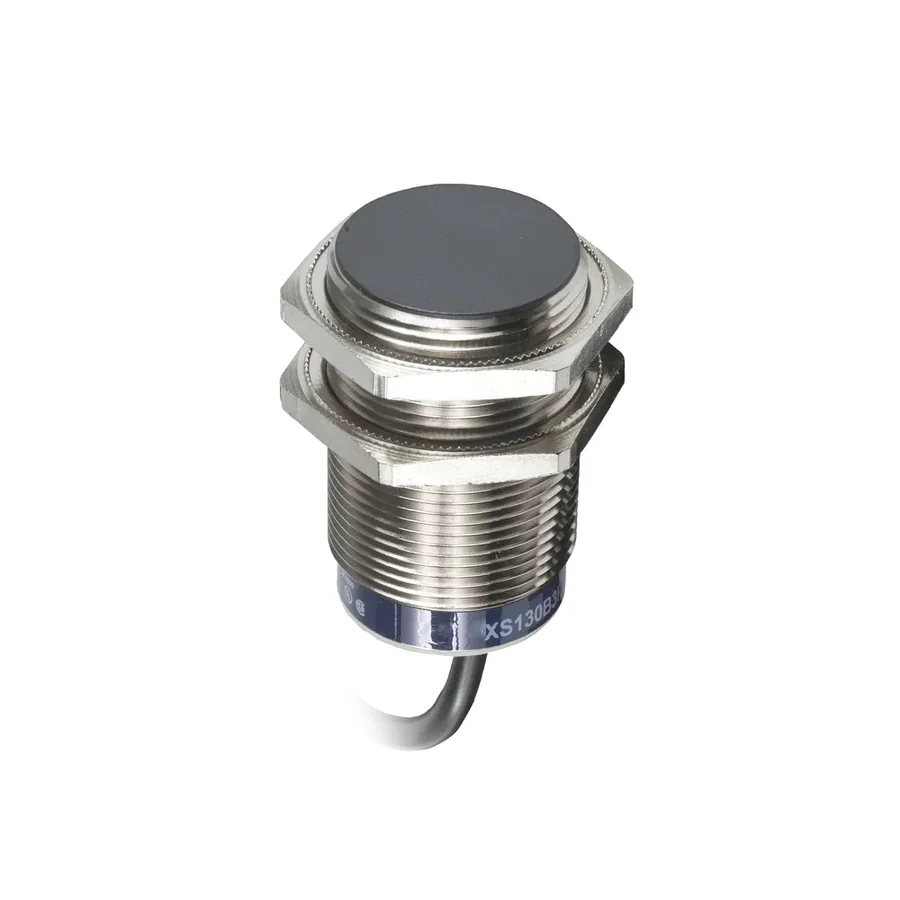

1. Sensor Type: Inductive proximity sensor
2. Housing Style: Cylindrical, M30 × 1.5 thread, 62mm length
3. Sensing Distance: 15mm (Nominal), flush mountable
4. Operating Voltage: 24 to 240 V AC/DC (50/60 Hz)
5. Output Function: 2-wire, Normally Open (NO)
6. Connection: 2-meter pre-wired PVC cable
7. Material: Nickel-plated brass body with a PPS sensing face
8. Protection Rating: IP68 and IP69K (dust-tight, withstands high-pressure washdowns)
9. Operating Temperature: -25°C to +70°C
10. Certifications: UL, CSA, CE [1, 2, 3, 4, 5]
