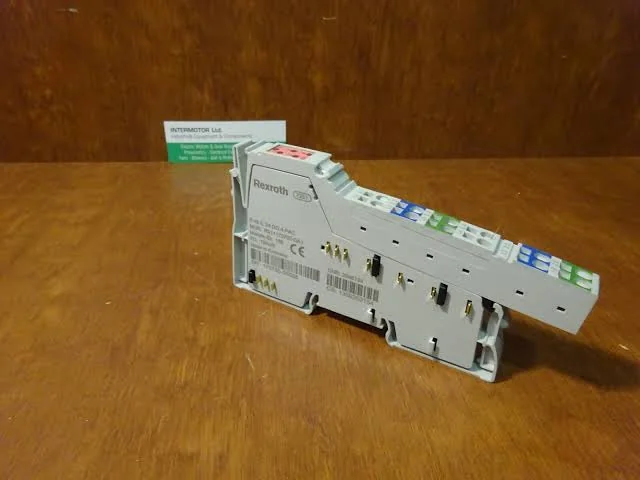

The Bosch Rexroth R911170755-GA1 (Type: R-IB IL 24 DO 4-PAC) is a high-performance Rexroth Inline Terminal Module designed specifically for automation systems requiring digital output processing. Complete Technical Specifications

1. Product Nomenclature: R-IB IL 24 DO 4-PAC
2. Part/Material Number (MNR): R911170755 (GA1 denotes the hardware modification/revision state)
3. Output Profile: 4 digital output channels
4. Nominal Voltage Output: 24 VDC
5. Maximum Current per Channel: 0.5 Amps
6. Signal Transmission Velocity: 500 kbps (standard speed configuration)
7. Connection Interface: Spring-cage connection terminal blocks (Zugfederanschluss)
8. Included Components: The standard shipping package includes the base terminal module, matching connector blocks, and a visual labeling strip.
9. Safety & Protection Circuitry: Features integrated electronic short-circuit and overload protection per segment circuit via its 4-channel driver framework.
