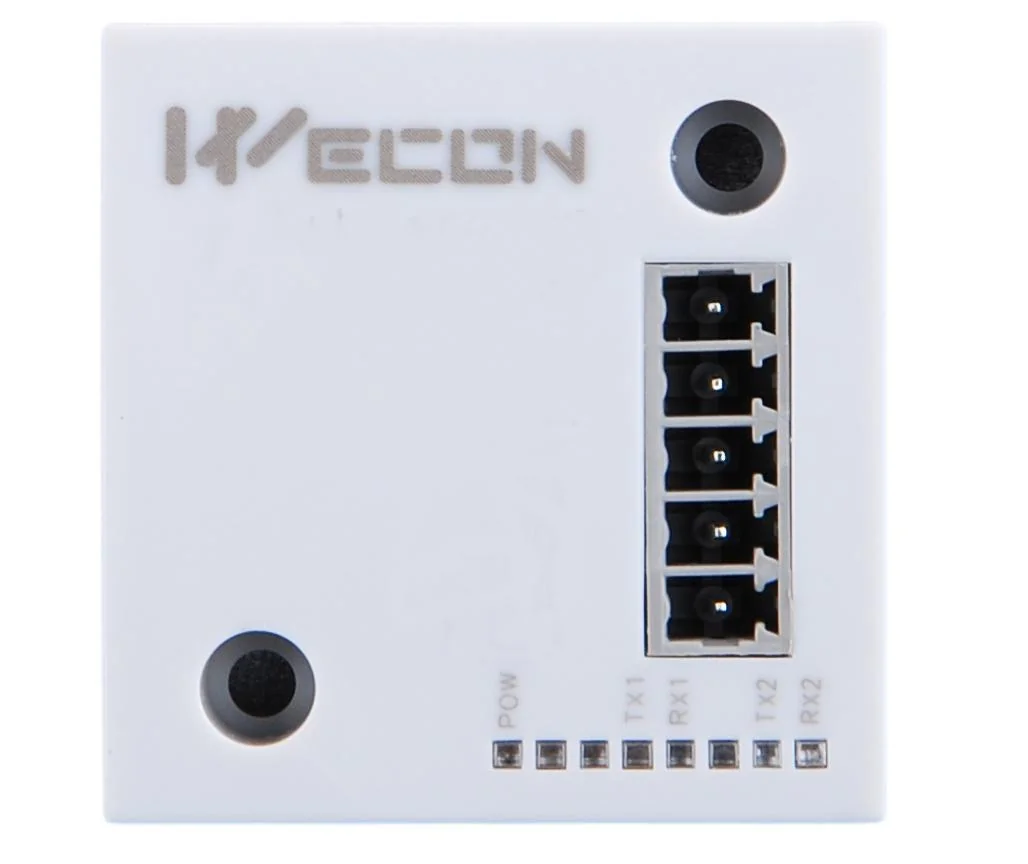

The Wecon LX3V-2PT-BD is a PT100 temperature sensor expansion and communication board (BD module) designed for Wecon LX3V series Programmable Logic Controllers (PLCs).

Key Specifications

1. Function: Adds two channels for connecting PT100 temperature sensors to read temperature values directly into the PLC.
2. Mounting: Installs directly on top of the host PLC without increasing the required installation footprint.
3. Input Signal: PT100 sensor, 3-wire type, 2 channels (CH1, CH2).
4. Compensation Range: -100°C to 600°C.
5. Digital Output: -1000 to 6000 (with units of 0.1°C)
