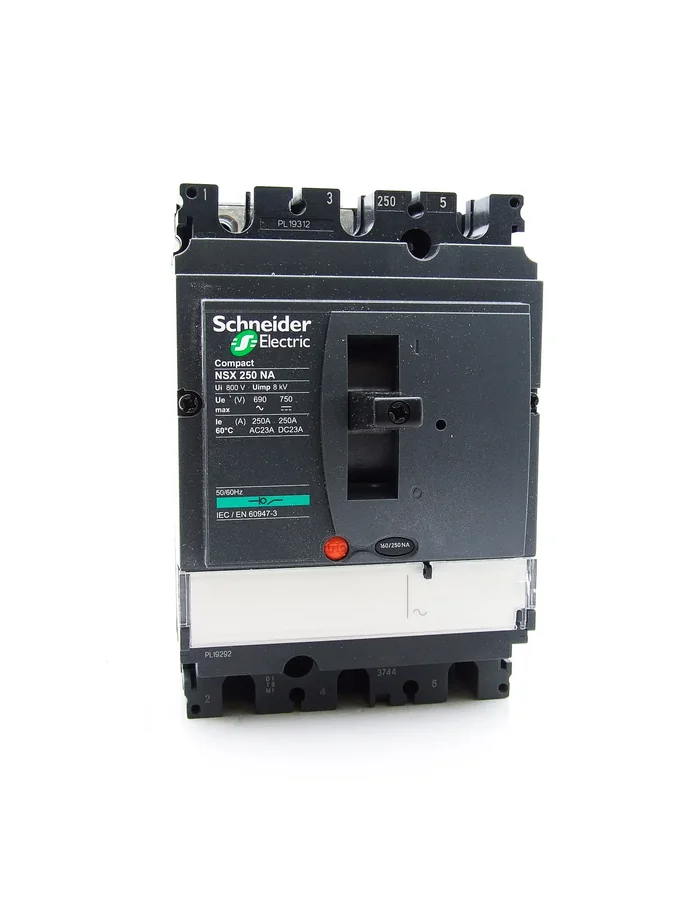

The LV431629 is a 3-pole, 250A non-fused switch-disconnector from the Schneider Electric ComPact NSX range. Designed to control and isolate electrical distribution circuits, it operates at voltages up to 690V AC and features NA (No Overcurrent Protection). [1, 2, 3, 4]

Key Technical Specifications

1. Product Type: Switch disconnector (Load Break Switch)
2. Rated Operational Current (\(I_{e}\)): 250 A at 415V AC / 690V AC
3. Poles Description: 3 Poles (3P)
4. Network Type: AC and DC
5. Rated Operational Voltage (\(U_{e}\)): 690 V AC 50/60 Hz, up to 750 V DC
6. Rated Insulation Voltage (\(U_{i}\)): 800 V AC 50/60 H
