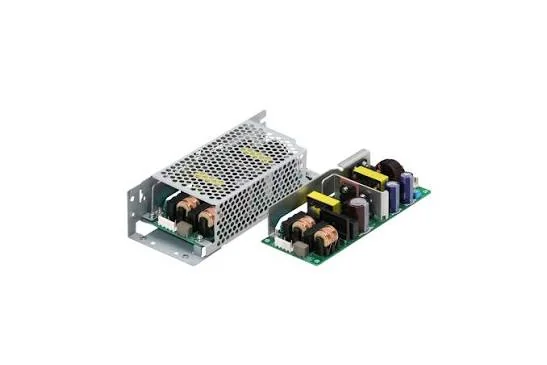

The LFA100F-24-J1 is a 103.2W, 24VDC single-output open-frame AC-DC switching power supply manufactured by Cosel

Core Technical Specifications

1. Manufacturer: Cosel USA, Inc.
2. Output Power: 103.2 W
3. Output Current: 4.3 A
4. Input Frequency: 47 Hz to 63 Hz
5. Efficiency: 87%
6. Isolation Voltage: 3 kVAC
7. Operating Temperature: -10°C to +70°C
8. Dimensions (Open Frame): 155 mm × 62 mm × 30 mm (6.10" L × 2.44" W × 1.32" H)
9. Protections: Built-in overcurrent, overvoltage, and inrush current protection
10. Compliance & Safety: CE, CSA, cURus, TUV, UL (Conforms to UL 60950-1 and EN 62368-1).
