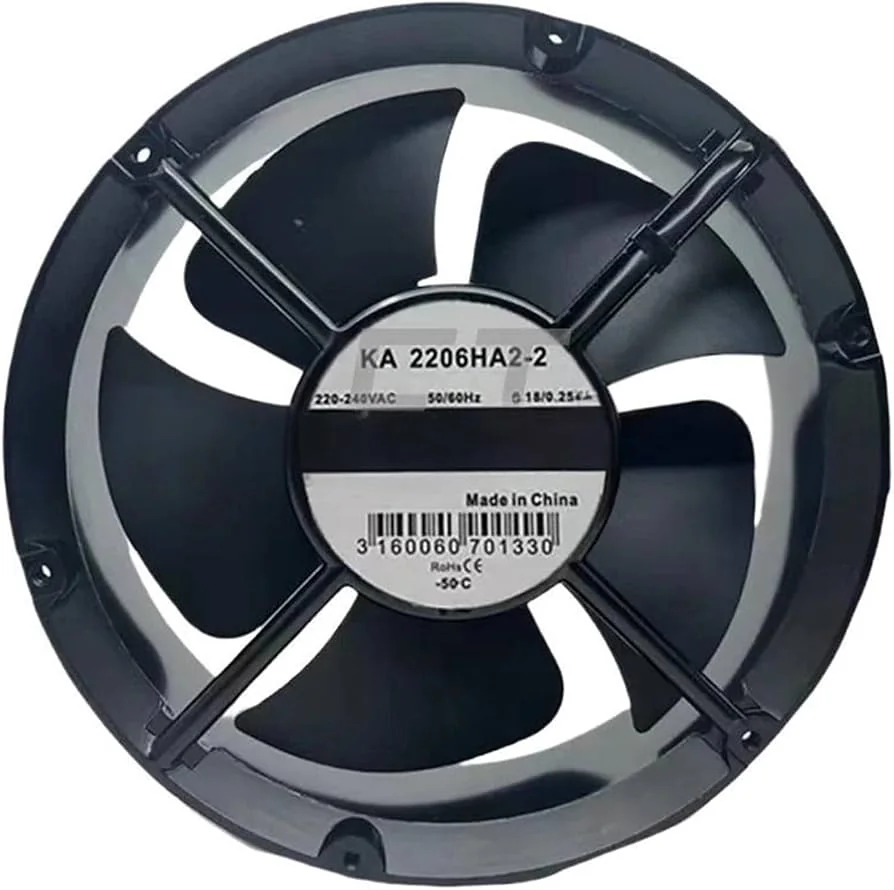

The KAKU KA2206HA2 is a high-performance 220/240V AC axial cooling fan designed for industrial cabinets, electrical control panels, and machinery enclosures.

Technical Specifications

1. Manufacturer: KAKU
2. Model Number: KA2206HA2
3. Fan Type: AC Axial / Cabinet Cooling Fan
4. Dimensions: 222 × 222 × 60 mm (often referenced as 220 × 220 × 60 mm)
5. Nominal Voltage: 220–240 VAC (50/60 Hz)
6. Current Rating: ~0.18 A – 0.26 A
7. Power Consumption: 40 W / 53 W (up to ~58 W depending on frequency/load)
8. Rotational Speed: 2,800 / 3,300 RPM
9. Bearing Type: Ball Bearing
10. Housing & Blade Material: All-metal frame and impeller (magnesium alloy / mild steel)
11. Protection Rating: IP55 (dust and water spray resistant)
12. Noise Level: 63 – 68 dBA
13. Operating Temperature: -50 °C to +70 °C
14. Certifications: UL, CE, RoHS
