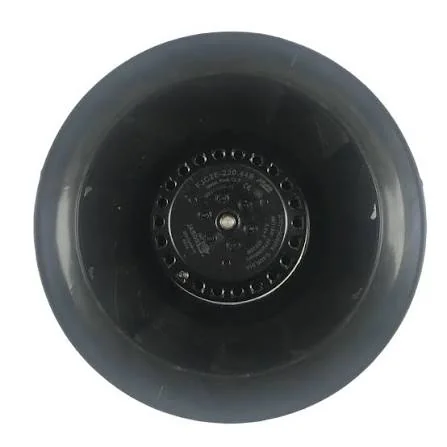

The FJC2E-220.44B is a 220mm backward-curved centrifugal fan (often manufactured by Jasonfan) designed for industrial cooling, ventilation, air conditioning, and air purification systems.

Key Specifications and Description

1. Brand/Manufacturer: Jasonfan
2. Product Type: Backward curved centrifugal fan (blower)
3. Blade/Impeller Diameter: 220mm (made of black PA nylon one-time injection moulding)
4. Rated Voltage: 230V AC (or 115V/400V variants depending on model configuration)
5. Frequency: 50/60 Hz
6. Current: 0.46 / 0.51 A
7. Input Power: 98 / 120 W
8. Speed: 2500 / 2700 RPM (up to 2600–2900 RPM ranges)
9. Max Air Flow: 507 to 600 CFM (approx. 860 / 980 m³/h)
10. Static Pressure: 380 / 550 Pa
11. Noise Level: 67 / 70 dB
12. Motor Structure: Cage type capacitor structure external rotor motor
13. Protection & Safety: Internal motor with automatic recovery thermal protector; Protection Grade IP44; Insulation Grade Grade F (IEC61858)
14. Certifications: CE, ROHS, UL (varies by specific regional sub-model)
15. Unit Weight: 1.8 kg (Color: Black)
16. Operating Temperature & Humidity: -40°C to +80°C, 0% to 95% RH
