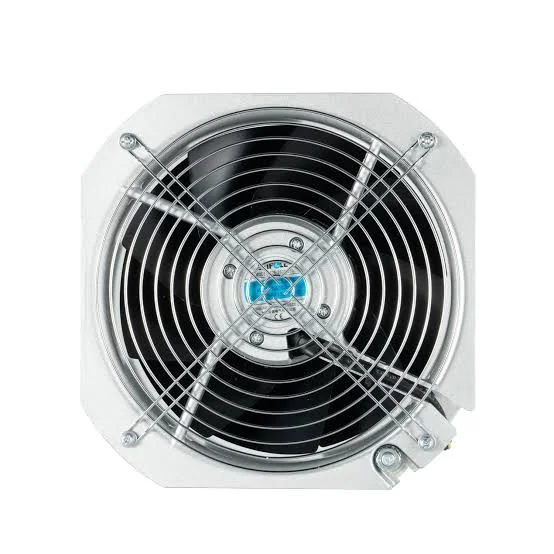

F2E-260B-230 is an industrial AC axial cooling fan designed for climate control and ventilation in electrical cabinets, machinery panels, and automation enclosures.

Technical Specifications

1. Dimensions: 225 mm x 225 mm x 80 mm (or outer frame profile roughly 260 x 225 x 80 mm)
2. Rated Voltage: 220/230 VAC (50/60 Hz)
3. Current: 0.29 / 0.33 A (50/60 Hz)
4. Power: 65 / 77 W
5. Speed: 2550 / 2700 r/min (RPM)
6. Air Flow: 915 / 1010 m³/h
7. Noise Level: 63 / 61 dB
8. Bearing Type: Ball bearing
9. Weight: 2.2 kg

Material: Die-cast aluminum alloy frame with a black anti-corrosion finish and a black plastic (PBT UL94V-0) or painted sheet steel impeller.
