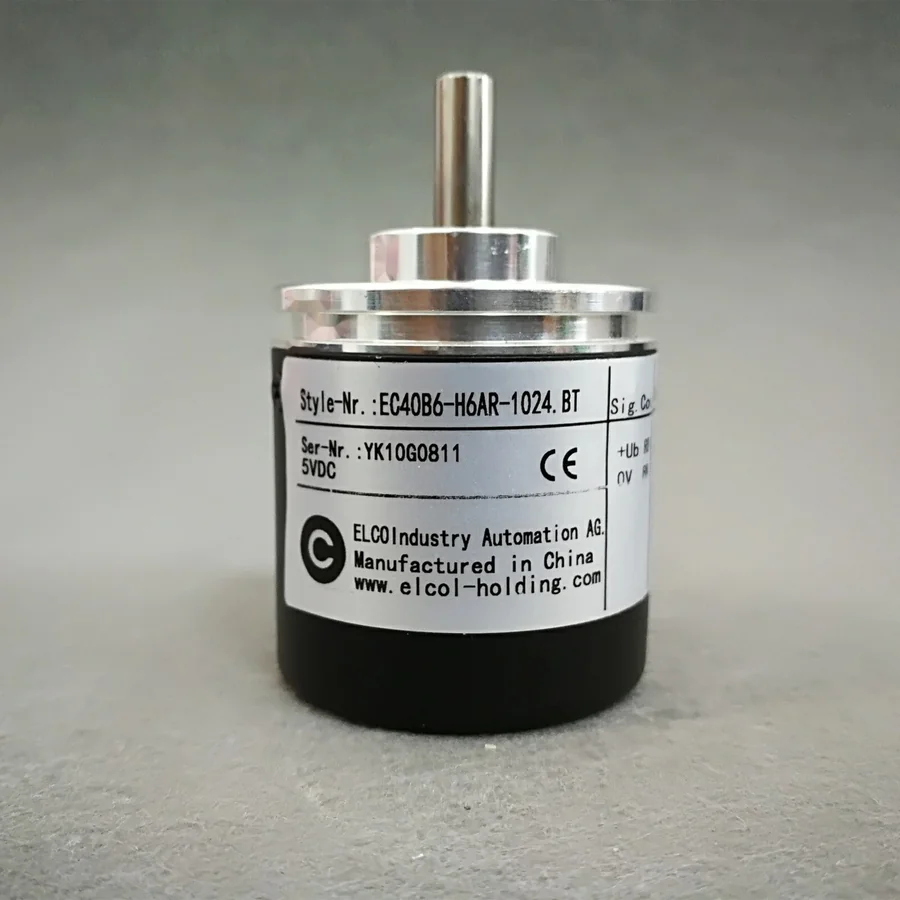

The EC40B6-H6AR-1024.BT is a compact photoelectric incremental rotary encoder manufactured by ELCO (often used in industrial automation, CNC machines, electric power transmission, and heavy equipment like container handlers or reach stackers).

Technical Specifications

1. Brand / Series: ELCO (EC40 Series)
2. Resolution: 1024 PPR (Pulses Per Revolution)
3. Flange Type: ø 20 mm clamping flange with synchronous flange groove
4. Shaft Diameter: ø 6 mm (shaft length: 12.5 mm)
5. Output Interface: Push-Pull HTL with inverted/reverse signal
6. Operating Voltage: 10 ... 30 V DC
7. Connection Type: Radial cable output (approx. 2m metal fixed head output)
8. Protection Class: IP66
