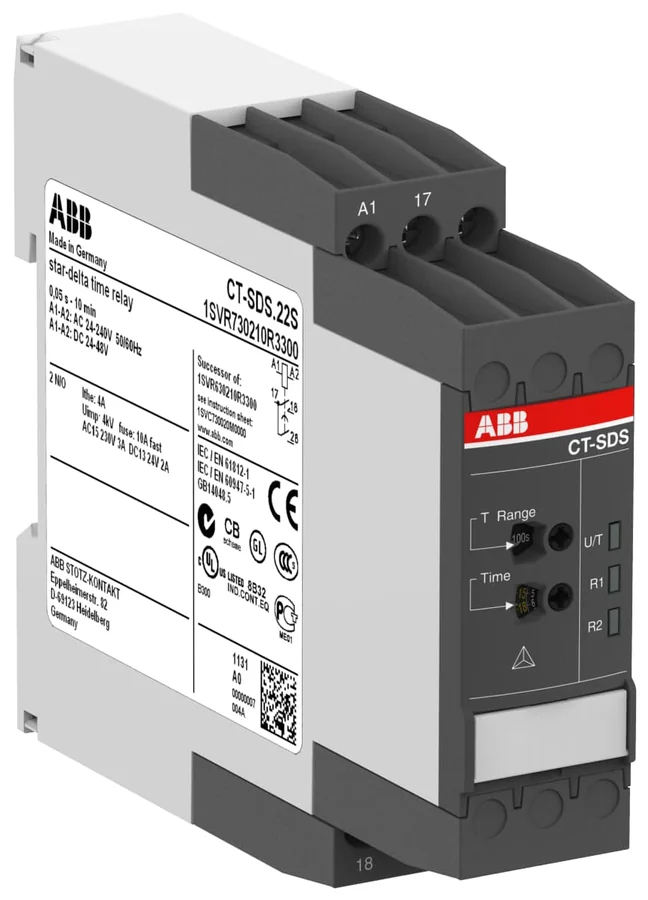

CTSDS.22 - (ID: 1SVR730210R3300)

Time Relay

A single-function electronic star-delta timer relay from the high-performance CT-S range.

Request Quote Download Datasheet
Brand
ABB
Country of origin
SWEDEN

Product Description

Key Technical Specifications

  1. Function: Star-delta changeover with a fixed transition time of 50 ms.
  2. Time Ranges: 7 adjustable time ranges spanning from 0.05 seconds to 10 minutes.
  3. Control Supply Voltage: Dual rated for 24–240 V AC / 24–48 V DC.
  4. Output Configuration: 2 Normally Open (N/O) contacts rated at 250 V / 4 A.
  5. Terminals: Double-chamber cage connection screw terminals.
  6. Mounting: Designed for standard TH35-15 DIN rail attachment.
  7. Protection Class: IP50-rated housing and IP20-rated terminals. [1, 2]
