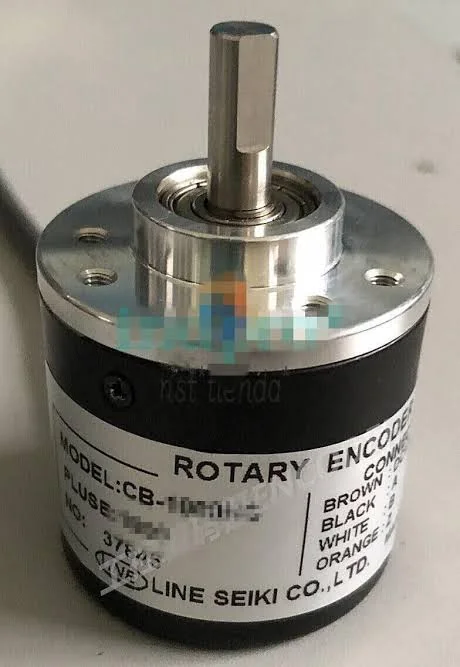

The CB-1200HC is a high-performance, low-cost optical incremental rotary encoder manufactured by Line Seiki Co., Ltd.. It is designed for industrial automation equipment to measure the amount of shaft rotation, speed, angle, and position by converting rotational movement into electrical pulses.

Key Specifications

Based on the official Line Seiki CB Series Catalog and merchant documentation, here are the detailed specifications for the CB-1200HC model:

1. Resolution: 1200 Pulses Per Revolution (PPR).
2. Output Type: Open Collector.
3. Supply Voltage: DC 12V to 24V (±10% ripple max 3%).
4. Current Consumption: 50 mA maximum.
5. Output Signals: 90° Quadrature + Zero Marking (Channels A, B, and Z).
6. Max Response Frequency: 100 kHz.
