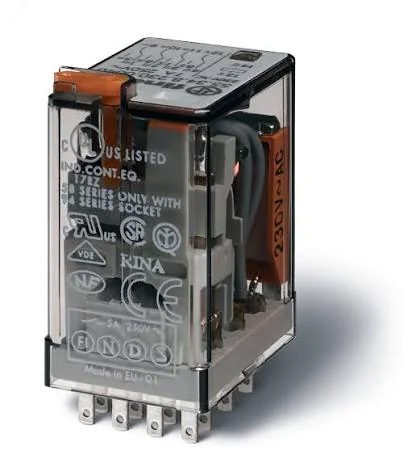

The Finder 55.34.8.110.5054 is an electromagnetic plug-in power relay featuring a 4PDT (4-pole double-throw) contact configuration, a 110V AC coil, a 7A maximum contact current rating, and a lockable test button with a mechanical flag indicator.

Technical Specifications

1. Manufacturer: Finder
2. Relay Type: Electromagnetic, monostable power relay
3. Series: Finder Series 55
4. Coil Voltage: 110V AC (50/60 Hz)
5. Coil Resistance & Power: 3.94 kΩ, 1.5W consumption
6. Contacts Configuration: 4PDT (4-pole double-throw / 4 CO)
7. Max Contact Current: 7A
8. AC Contact Rating: 7A at 250V AC (resistive load)
9. Contact Material: AgNi (Silver Nickel)
10. Mounting Options: Plug-in socket or PCB mounting
11. Body Dimensions: 27.7 x 20.7 x 37.2 mm
12. Operating Temperature: -40°C to +85°C
