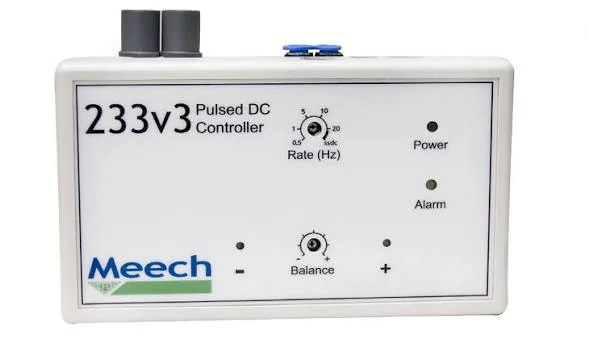

The Meech Model 233v3 is a compact, light, pulsed DC controller designed to operate the Series 200 range of ionising equipment for static and ESD (Electrostatic Discharge) control. Operating at 24V DC, it supplies power and regulates the ionisation pulse frequency for compatible static eliminators and ion guns. [1, 2, 3]

Key Specifications

1. Input Voltage: 24V DC (via 2.5mm jack socket, centre positive)
2. Output Frequency: Adjustable between 0.5Hz and 20Hz
3. Output Current: 120μA
4. Temperature Range: Operating temperatures between -10°C to 60°C (14°F to 149°F)
5. Weight: 0.3 kg
6. Remote Features: Includes remote HV on/off (via 3.5mm jack) and an alarm relay (via 8-way DIN connector)
7. Air Connection: 6mm push-in fitting for compressed air integration [1, 2, 3]

Common Applications

The 233v3 controller is widely used alongside anti-static devices like the Meech Model 251 Ion Gun. This combination is highly effective for contamination blow-off, neutralising static charges in electronic assembly lines, and maintaining cleanliness in strict cleanroom environments. [1, 2]
